FlexiOH® Short Arm Immobilizer

Absolute washable orthopedic Immobilizer for immobilization of wrist joint and closed fractures at radius-ulna.

INTENDED USE

Non-displaced / Stable / minimally displaced / Buckle fracture of distal radius fracture
Carpal bone fracture other than Scaphoid / Trapezium
As a removable splint during rehabilitation

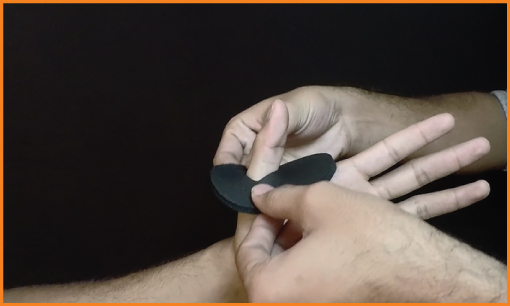

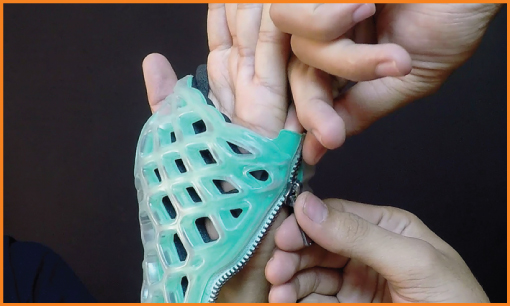

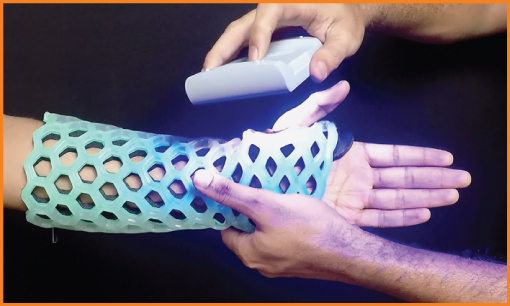

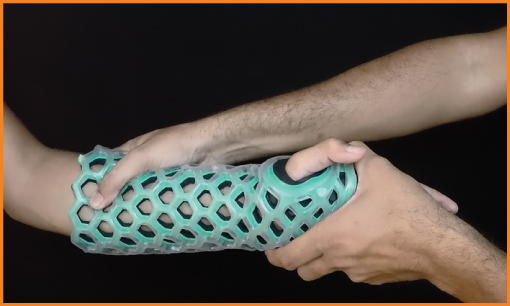

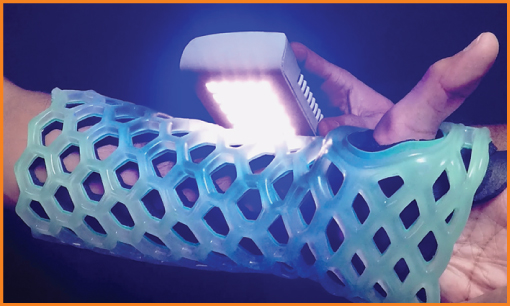

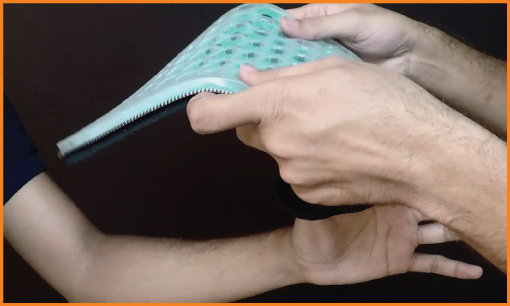

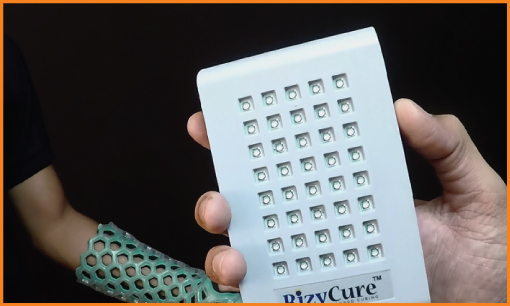

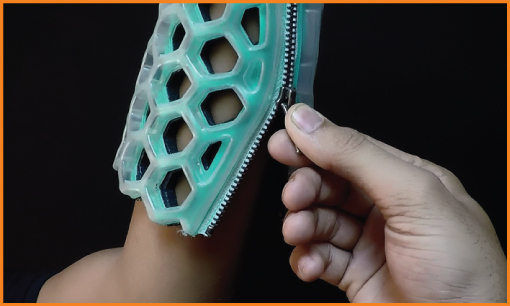

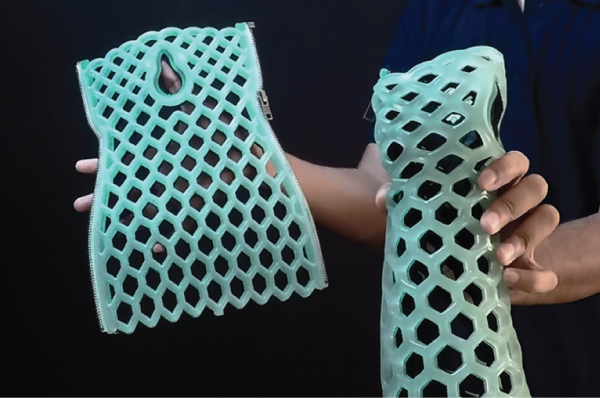

FlexiOH® short arm immobilizers are designed for distal radius/non-displaced/stable fractures or carpal bone fractures other than scaphoid fractures. This breathable, washable and light weight (~300 gm) immobilizer provides better comfort to the patients compared to conventional casts. For application of FlexiOH® short arm immobilizer, healthcare professional first need to apply it on the patient’s hand with the zip and then cure it with the Rizycure® light device (recommended) or direct sunlight for around 3-10 minutes depending on the size of immobilizer. Once it is rigid,cut the puller of the zip with pliers so that patient can not remove the immobilizer by themselves.

FlexiOH® short arm immobilizer comes in 8 different sizes : XS, S, M, L, XL, SM, SL and SXL. All of the immobilizers vary in terms of palm circumference, wrist circumference, and arm circumference. For the best fit of FlexiOH® short arm immobilizer, taking the measurement of patient’s hand is necessary before application.

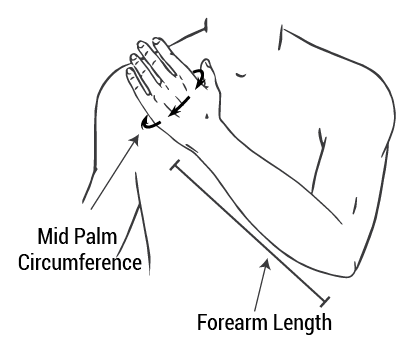

MEASUREMENT GUIDE

SIZE CHART (in cm)

Size vs Measurement (Short Arm Cast)	XS	S	M	L	XL	SM	SL	SXL
Mid-Palm Circumference:	11-14	14-17	17-18.5	18.5-22.5	22.5-24.5	17-18.5	18.5-22.5	22.5-24.5
Forearm Length:	18-21	23-26	26-29	29-30	30-33	23-27	27-29	29-30

* Above sizes fit better as per dimensions mentioned in the table.
* However FlexiOH^® adapts to an oversize to certain extend by stretch-ability.
* We advise the healthcare professionals to choose the size as per patient’s comfort.
